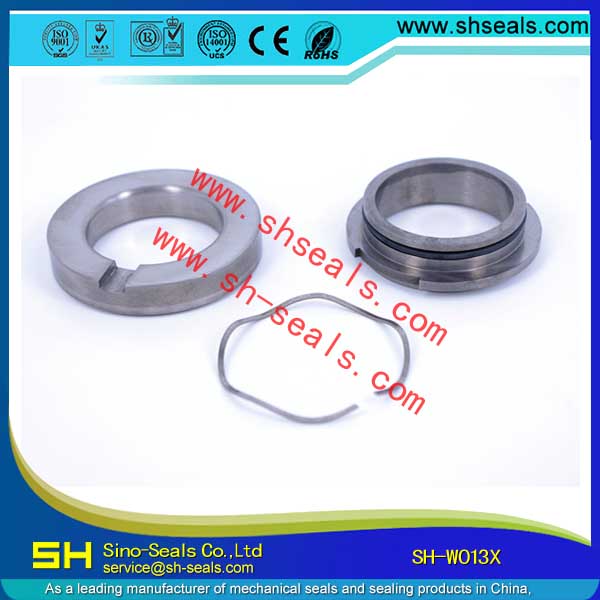

SH-W013X

Short Description:

Equivalent with AESSEAL W013X. for Waukesha SP4 series pump.


Product Detail

Product Tags

Suit Waukesha C series pumps   C100/C114/C216/C218/C328
Mechanical seals for Waukesha cherry-burrell  200 series pump
Mechanical seals for Waukesha DO models pump , DO 3,10,16, DO 25, DO55,125
Mechanical seals for Waukesha PD series pumps , 5040,5050,5070,5080
Mechanical seal for Waukesha UL pumps
Mechanical seals for Waukesha Universal 1 pumps
Pump Model :
Universal l Parts Models 6,14,15,18,24,Universal l Parts Models 30,33,34,
Universal l Parts Model 40,Universal l Parts Models 60,64,130,133,134
Universal l Parts Models 220,223,224,Universal l Parts Models 320,323,324
Mechanical seal for Waukesha Universal II,
Pump model:Waukesha Universal ll Parts Models 6, 14, 15, 18,24,30,33,34
Waukesha Universal ll Parts Models 45, 60, 64,130, 180,184, 220, 224
Waukesha Universal ll Parts Models 210, 213, 224, 320
P/N of Mechanical seal :
O-Ring, Body, Buna N 2 AD0 079 000 6, 25
* O-Ring, Body, EPDM 2 AD0 079 002 6, 25
* O-Ring, Body, FKM 2 AD0 079 V00 6
* O-Ring, Body, Silicone 2 AD0 079 SC0 6
* O-Ring, Shaft, Buna N 2 N70022 25
* O-Ring, Shaft, EPDM 2 E70022 25
* O-Ring, Shaft, FKM 2 V70022 25
* O-Ring, Shaft, Silicone 2 S75022 25
* Sleeve, SS 2 015 098 000
* Sleeve, Zirconia 2 015 098 004
* Sleeve, Chrome Oxide 2 015 098 002
84 O-Ring Seal Carrier 2 015 034 000 7
* 85 O-Ring, Outer, Buna N – Seal Carrier 2 N50228 7, 8
* Seal Seat, Ceramic 2 015 014 002
* Seal Seat, Chrome Oxide 2 015 014 001
* Seal Seat, Silicon Carbide 2 015 014 009
* Seal Inner, Carbon (2 piece) 2 015 306 001
* Seal Inner, Carbon (1 piece) 2 015 306 007
* Seal Inner, Ceramic 2 40635
* Seal Inner, Chrome Oxide 2 015 306 002
* Seal Inner, Silicon Carbide 2 015 306 009
88 Wave Spring 2 015 304 000
* 89 Outer Seal, Carbon (1 piece) 2 015 206 007 8
O-Ring, Body, Buna N 2 N70327 6, 25
* O-Ring, Body, EPDM 2 E70327 6, 25
* O-Ring, Body, FKM 2 V70327 6
* O-Ring, Body, Silicone 2 S75327 6
* O-Ring, Shaft, Buna N 2 N70028 16, 25
* O-Ring, Shaft, EPDM 2 E70028 16, 25
* O-Ring, Shaft, FKM 2 V70028 16
* O-Ring, Shaft, Silicone 2 S75028 16, 25
* Sleeve, SS 2 030 098 000
* Sleeve, Zirconia 2 030 098 004
* Sleeve, Chrome Oxide 2 030 098 002
84 O-Ring Seal Carrier 2 030 034 000 7
* O-Ring, Outer, Buna N – Seal Carrier 2 N50335 7, 8
* O-Ring, Outer, EPDM – Seal Carrier 2 E50335 7, 8
* O-Ring, Outer, FKM – Seal Carrier 2 V50335 7, 8
* O-Ring, Outer, Silicone – Seal Carrier 2 S50335 7, 8
* 030-034-U1 Seal Seat, Ceramic 2 030 014 002
* 030-034-U1 Seal Seat, Chrome Oxide 2 030 014 001
* 030-034-U1 Seal Seat, Silicon Carbide 2 030 014 009
* 033-U1 Seal Seat, Ceramic 2 033 014 002 11
* 033-U1 Seal Seat, Chrome Oxide 2 033 014 001 11
* 033-U1 Seal Seat, Silicon Carbide 2 033 014 009 11
* Seal Inner, Carbon (2 piece) 2 030 306 001
* Seal Inner, Carbon (1 piece) 2 030 306 007
* Seal Inner, Ceramic 2 40821
* Seal Inner, Chrome Oxide 2 030 306 002
* Seal Inner, Silicon Carbide 2 030 306 009
88 Wave Spring 2 030 304 000
* Outer Seal, Carbon (1 piece) 2 030 206 007 8
* Outer Seal, Chrome Oxide 2 030 206 002 8

O-Ring, Body, Buna N 2 N70331 6, 25
* O-Ring, Body, EPDM 2 E70331 6
* O-Ring, Body, FKM 2 V70331 6
* O-Ring, Body, Silicone 2 S75331 6
* O-Ring, Shaft, Buna N 2 N70131 16, 25
* O-Ring, Shaft, EPDM 2 E70131 16, 25
* O-Ring, Shaft, FKM 2 V70131 16
* O-Ring, Shaft, Silicone 2 S75131 16
* Sleeve, SS 2 060 098 000
* Sleeve, Zirconia 2 060 098 004
* Sleeve, Chrome Oxide 2 060 098 002
84 O-Ring Seal Carrier 2 060 034 000 7
* O-Ring, Outer, Buna N – Seal Carrier 2 N50338 7, 8
* O-Ring, Outer, EPDM – Seal Carrier 2 E50338 7, 8
* O-Ring, Outer, FKM – Seal Carrier 2 V50338 7, 8
* 060-064-130-134-U1 Seal Seat, Ceramic 2 060 014 002
* 060-064-130-134-U1 Seal Seat, Chrome Oxide 2 060 014 001
* 060-064-130-134-U1 Seal Seat, Silicon Carbide 2 060 014 009
* 133-U1 Seal Seat, Ceramic 2 133 014 002 11
* 133-U1 Seal Seat, Chrome Oxide 2 133 014 001 11
* 133-U1 Seal Seat, Silicon Carbide 2 133 014 009 11
* Seal Inner, Carbon (2 Piece) 2 060 306 001
* Seal Inner, Carbon (1 Piece) 2 060 306 007
* Seal Inner, Ceramic 2 40642
* Seal Inner, Chrome Oxide 2 060 306 002
* Seal Inner, Silicon Carbide 2 060 306 009
88 Wave Spring 2 060 304 000
* Outer Seal, Carbon (1 Piece) 2 060 206 007 8
* Outer Seal, Chrome Oxide 2 060 206 002 8

O-Ring, Body, Buna N 2 N70338 6, 25
* O-Ring, Body, EPDM 2 E70338 6
* O-Ring, Body, FKM 2 V70338 6
* O-Ring, Body, Silicone 2 S75338 6
* O-Ring, Shaft, Buna N 2 N70144 16, 25
* O-Ring, Shaft, EPDM 2 E70144 16
* O-Ring, Shaft, FKM 2 V70144 16
* O-Ring, Shaft, Silicone 2 S75144 16
* Sleeve, SS 2 220 098 000
* Sleeve, Zirconia 2 220 098 004
* Sleeve, Chrome Oxide 2 220 098 002
84 O-Ring Seal Carrier 2 220 034 000 7
* O-Ring, Outer, Buna N – Seal Carrier 2 N50344 7, 8
* O-Ring, Outer, EPDM – Seal Carrier 2 E50344 7, 8
* O-Ring, Outer, FKM – Seal Carrier 2 V50344 7, 8
* O-Ring, Outer, Silicone – Seal Carrier 2 S50344 7, 8
* 220-224-U1 Seal Seat, Ceramic 2 220 014 002
* 220-224-U1 Seal Seat, Chrome Oxide 2 220 014 001
* 220-224-U1 Seal Seat, Silicon Carbide 2 220 014 009
* 223-U1 Seal Seat, Ceramic 2 223 014 002 11
* 223-U1 Seal Seat, Chrome Oxide 2 223 014 001 11
* 223-U1 Seal Seat, Silicon Carbide 2 223 014 009 11
* Seal Inner, Carbon (2 piece) 2 220 306 001
* Seal Inner, Carbon (1 piece) 2 220 306 007
* Seal Inner, Ceramic 2 40830
* Seal Inner, Chrome Oxide 2 220 306 002
* Seal Inner, Silicon Carbide 2 220 306 009
88 Wave Spring 2 220 304 000
* Outer Seal, Carbon (1 piece) 2 220 206 007 8
* Outer Seal, Chrome Oxide 2 220 206 002 8

OUTER SEAL
* 70 Crane #8B2 Outer Seal, Carbon 2 323 114 003 30
* O-Ring, Outer Seal, Shaft, EPDM 2 E70234
* O-Ring, Outer Seal, Shaft, FKM 2 V70234
* O-Ring, Outer Seal, Shaft, Silicone 2 S75234
* “T” Seat, Plain, Ceramic 2 300 014 012
* “T” Seat, Plain, Tungsten Carbide 2 300 014 013
* “T” Seat, Plain, Silicon Carbide 2 300 014 016
* 72B, 72C Gasket, Inner and Outer 4 300 042 001
73 Gland, Plain 2 300 034 001
73B 3/8-16 x 1-1/4″ HHCS 8 30-60
73C Lockwasher, 3/8″ 8 43-28
INNER SEAL
* Waukesha HD Inner Seal, Silicon Carbide 2 40572 16
* Waukesha HD Inner Seal, Ceramic 2 40573 16
* Waukesha HD Inner Seal, Chrome Oxide 2 40574 16
* Seal Face, Silicon Carbide 2 40754
* Seal Face, Ceramic 2 40755
* Seal Face, Chrome Oxide 2 40756
* Seal Face, Tungsten Carbide 2 109347
* Seal Face, Carbon 2 36027
* O-Ring, Inner Seal, Shaft, EPDM 2 E70234
* O-Ring, Inner Seal, Shaft, FKM 2 V70234
* O-Ring, Inner Seal, Shaft, Silicone 2 S75234
* 71D Spring 12 40875
* 71F Set Screw 8 110038
* O-Ring, Inner Seal, Seal Face, EPDM 2 E70238
* O-Ring, Inner Seal, Seal Face, FKM 2 V70238
* O-Ring, Inner Seal, Seal Face, Silicone 2 S75238
INNER – OUTER SEAL
71C Carrier Inner Sub-Assembly 1 35284
* “T” Seat, Flushed, Ceramic 2 300 014 027
* “T” Seat, Flushed, Tungsten Carbide 2 300 014 028
* “T” Seat, Flushed, Chrome Oxide 2 300 014 029
* “T” Seat, Flushed, Silicon Carbide 2 300 014 031
* 72B Gasket, Inner 2 300 042 001
* 72C Gasket, Flushed Gland, Outer 2 300 042 002
73A Gland, Flushed 2 300 034 001

P/N of Mechanical seal
* O-Ring, Inner Seal, Buna N 2 N70028 25
* O-Ring, Body, EPDM 2 E70028 25
* O-Ring, Body, FKM 2 V70028
* O-Ring, Shaft, Buna N 2 N70024 25
* O-Ring, Shaft, EPDM 2 E70024 25
* O-Ring, Shaft, FKM 2 V70024
* Seal Seat, Ceramic 2 101667
* Seal Seat, Silicon Carbide 2 101668
* Seal Inner, Carbon 2 101651
* Seal Inner, Ceramic 2 101652
* Seal Inner, Silicon Carbide 2 101653
* Seal Inner, Tungsten Carbide 2 101654
95 Wave Spring, Inner Seal 2 101683
* O-Ring, Outer Seal, Buna N 2 N70035 8
* O-Ring, Outer Seal, EPDM 2 E70035
* O-Ring, Outer Seal, FKM 2 V70035
97 Wave Spring, Outer Seal 2 101684 8
* 98 Outer Seal, Carbon 2 101679 8
O-Ring, Inner Seal, Buna N 2 N70031 25
* O-Ring, Body, EPDM 2 E70031
* O-Ring, Body, FKM 2 V70031
* O-Ring, Shaft, Buna N 2 N70029 25
* O-Ring, Shaft, EPDM 2 E70029 25
* O-Ring, Shaft, FKM 2 V70029
* Seal Seat, Ceramic 2 101670
* Seal Seat, Silicon Carbide 2 101671
* Seal Inner, Carbon 2 101655
* Seal Inner, Ceramic 2 101656
* Seal Inner, Silicon Carbide 2 101657
* Seal Inner, Tungsten Carbide 2 101658
95 Wave Spring, Inner Seal 2 101685
* O-Ring, Outer Seal, Buna N 2 N70041 8
* O-Ring, Outer Seal, EPDM 2 E70041 8
* O-Ring, Outer Seal, FKM 2 V70041 8
97 Wave Spring, Outer Seal 2 101686 8
* 98 Outer Seal, Carbon 2 101680 8
O-Ring, Inner Seal, Buna N 2 N70035
* O-Ring, Inner Seal, EPDM 2 E70035
* O-Ring, Inner Seal, FKM 2 V70035
* O-Ring, Shaft, Buna N 2 N70133 25
* O-Ring, Shaft, EPDM 2 E70133 25
* O-Ring, Shaft, FKM 2 V70133
* Seal Seat, Ceramic 2 101673
* Seal Seat, Silicon Carbide 2 101674
* Seal Inner, Carbon (1 Piece) 2 101659
* Seal Inner, Ceramic 2 101660
* Seal Inner, Silicon Carbide 2 101661
* Seal Inner, Tungsten Carbide 2 101662
95 Wave Spring, Inner Seal 2 101687
* O-Ring, Outer Seal, Buna N 2 N70043 8
* O-Ring, Outer Seal, EPDM 2 E70043 8
* O-Ring, Outer Seal, FKM 2 V70043 8
97 Wave Spring, Outer Seal 2 101688
* 98 Outer Seal, Carbon 2 101681 8
O-Ring, Inner Seal, Buna N 2 N70041 25
* O-Ring, Inner Seal, EPDM 2 E70041
* O-Ring, Inner Seal, FKM 2 V70041
* O-Ring, Shaft, Buna N 2 N70145 25
* O-Ring, Shaft, EPDM 2 E70145
* O-Ring, Shaft, FKM 2 V70145
* Seal Seat, Ceramic 2 101676
* Seal Seat, Silicon Carbide 2 101677
* Seal Inner, Carbon (1 Piece) 2 101663
* Seal Inner, Ceramic 2 101664
* Seal Inner, Silicon Carbide 2 101665
* Seal Inner, Tungsten Carbide 2 101666
95 Wave Spring, Inner Seal 2 101689
* O-Ring, Outer Seal, Buna N 2 N70046 8
* O-Ring, Outer Seal, EPDM 2 E70046 8
* O-Ring, Outer Seal, FKM 2 V70046 8
97 Wave Spring, Outer Seal 2 101690
* 98 Outer Seal, Carbon 2 101682 8
O-Ring, Inner Seal, Buna N 2 N70154 25
* O-Ring, Inner Seal, EPDM 2 E70154
* O-Ring, Inner Seal, FKM 2 V70154
* O-Ring, Shaft, Buna N 2 N70149 16
* O-Ring, Shaft, EPDM 2 E70149 16
* O-Ring, Shaft, FKM 2 V70149 16
* 210-214-320-324-U2 Seal Seat, Ceramic 2 105416
* 210-214-320-324-U2 Seal Seat, Silicon Carbid 2 105417
* 213-323-U2 Seal Seat, Silicon Carbide 2 112192
* Seal Inner, Carbon (1 Piece) 2 105412
* Seal Inner, Ceramic 2 105413
* Seal Inner, Silicon Carbide 2 105414
* Seal Inner, Tungsten Carbide 2 105415
95 Wave Spring, Inner Seal 2 105419
* O-Ring, Outer Seal, Buna N 2 N70160 8
* O-Ring, Outer Seal, EPDM 2 E70160 8
* O-Ring, Outer Seal, FKM 2 V70160 8
97 Wave Spring, Outer Seal 2 105420 8
* 98 Outer Seal, Carbon 2 105418 8
O-Ring, Inner Seal, Buna N 2 N70031 25
* O-Ring, Body, EPDM 2 E70031
* O-Ring, Body, FKM 2 V70031
* O-Ring, Shaft, Buna N 2 N70029 25
* O-Ring, Shaft, EPDM 2 E70029 25
* O-Ring, Shaft, FKM 2 V70029
* Seal Seat, Ceramic 2 101670
* Seal Seat, Silicon Carbide 2 101671
* Seal Inner, Carbon 2 101655
* Seal Inner, Ceramic 2 101656
* Seal Inner, Silicon Carbide 2 101657
* Seal Inner, Tungsten Carbide 2 101658
95 Wave Spring, Inner Seal 2 101685
* O-Ring, Outer Seal, Buna N 2 N70041 8
* O-Ring, Outer Seal, EPDM 2 E70041 8
* O-Ring, Outer Seal, FKM 2 V70041 8
97 Wave Spring, Outer Seal 2 101686 8
* 98 Outer Seal, Carbon 2 101680 8


  • Previous:
  • Next:

  •
